Hanbell RC2-510B-Z RC2-510B-W Refrigeration Screw Compressor for Cold Storage

Hanbell RC2-510B-Z RC2-510B-W Refrigeration Screw Compressor for Cold Storage
Hanbell RC2-510B-Z RC2-510B-W Refrigeration Screw Compressor for Cold Storage Hanbell RC2-510B-Z RC2-510B-W Refrigeration Screw Compressor for Cold Storage Hanbell RC2-510B-Z RC2-510B-W Refrigeration Screw Compressor for Cold Storage Hanbell RC2-510B-Z RC2-510B-W Refrigeration Screw Compressor for Cold Storage

Large Image :  Hanbell RC2-510B-Z RC2-510B-W Refrigeration Screw Compressor for Cold Storage

Product Details:
Place of Origin: China
Brand Name: Hanbell
Certification: CE
Model Number: RC2-510B-Z,RC2-510B-W
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Discussed
Packaging Details: WOODEN CASE
Delivery Time: 1 Month
Payment Terms: Western Union,T/T
Supply Ability: 100000Pcs/Year
Contact Now

Hanbell RC2-510B-Z RC2-510B-W Refrigeration Screw Compressor for Cold Storage

Description
Displacement 60/50Hz: 611/508 M3/hr Compressor Type: Air/Water Cooled
Horse Power(60/50Hz): 183/152 HP Application: HVAC, Condensing Unit, Cold Room, Rack System
Refrigerant: R134a, R22, R407C,R404A,R507A
Highlight:

Hanbell refrigeration screw compressor

,

cold storage screw compressor

,

RC2-510B-Z screw air compressor

Hanbell RC2-510B-Z RC2-510B-W Refrigeration Screw Compressor for Cold Storage
Product Description
High Efficiency Motor & Suction Cooling Design

The RC2-510B utilizes a premium grade low-loss core steel motor combined with a specialized internal cooling slot and refrigerant guide vane. Cold suction refrigerant gas is guided directly through the motor cavity, maintaining peak operational efficiency and effective heat dissipation even under demanding continuous B2B cooling conditions.

Direct Flange-On Oil Separator

Equipped with a direct flange-on vessel crafted from high-strength ductile iron (FC500), the oil separator is engineered to withstand high working pressures while delivering maximum oil separation efficiency. Featuring a low-pressure-drop demister, this system simplifies oil management, minimizes refrigerant dilution in the lubricant, and maintains high oil viscosity across system cycles.

Perceptive Protection Modules & System Monitoring

Built for uninterrupted industrial performance, the RC2-510B comes standard with PTC thermistors and an advanced electronic protection module. The system continuously monitors discharge gas temperatures, motor coil heat, phase sequence, and phase loss, with optional compatibility for oil level switches, differential pressure switches, and safety pressure relief valves.

Application Areas
  • Large Cold Storage Centers: Engineered for high-capacity medium-and-low-temperature logistics warehouses and agricultural precooling hubs requiring consistent refrigeration screw compressor performance.
  • Commercial Central HVAC: Ideal for large-capacity water-cooled and air-cooled liquid chillers operating in commercial complexes, hospitals, and high-rise office towers.
  • Industrial Process Cooling: Well-suited for heavy-duty process cooling systems in chemical, pharmaceutical, and manufacturing plants operating under variable dynamic loads.
Product Image

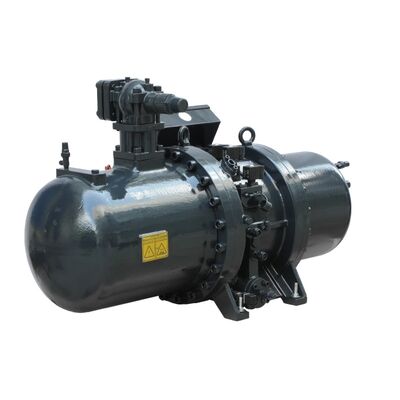

Hanbell RC2-510B Refrigeration Screw Compressor Unit
Technical Specification
Model RC2-510B-Z/RC2-510B-W
Cooling Type Air Cooled/Water Cooled
Nominal Power(60Hz/50Hz) 183/152HP
Refrigerant Type R134a, R22, R407C, R404A, R507A
Displacement(60/50Hz) 611/508 m³/hr
Capacity Control(Step) 35-50-75-100%
Capacity Control(Stepless) 35-100%
Lubricant Charge 20L
Oil Heater 150/300W
Weight 780Kg
RC2-510B Technical Diagram
Company Introduction

Ruifujie stands as a trusted B2B supply partner and manufacturer in global refrigeration technology. Operating with an international export focus, we combine rigorous factory quality control with full-spectrum supply chain integration—delivering everything from scroll and screw compressors to complete cold storage system assemblies. Overseas project contractors and HVAC OEMs rely on Ruifujie for technical compliance, stable lead times, and tailored product modifications that keep large-scale projects on schedule and within budget.

Ruifujie Manufacturing Facility
FAQ
Q1: What are the primary power and displacement specifications for the RC2-510B?
A: Operating at 50Hz, the unit delivers 508 m³/hr displacement with a nominal 152 HP. At 60Hz, it provides 611 m³/hr displacement with an 183 HP rating.
Q2: What capacity control options are integrated into this model?
A: The RC2-510B supports 4-stage stepped capacity control (35%-50%-75%-100%) as well as continuous stepless modulation (35%-100%) for variable dynamic load matching.
Q3: Which electrical starting configurations are supported on this model?
A: The compressor motor supports Star-Delta (Y-Δ), Part-Winding Start (PWS), and Direct-On-Line (DOL) wiring configurations.
Q4: What is the typical fulfillment timeframe for global commercial orders?
A: Standard sample units ship within 3 business days, while volume commercial manufacturing contracts are typically completed in 10 to 15 working days.
Q5: Can Ruifujie support customized technical specifications or private labeling?
A: Yes, we provide complete OEM/ODM options, including customized nameplates, branding, and specialized electrical motor configurations tailored to regional power grids.
Connect with Our HVAC Technical Team

Upgrading your commercial refrigeration line or sourcing high-capacity screw units for an upcoming project? Contact the Ruifujie engineering department to receive tailored selection advice, technical datasheets, and direct factory wholesale pricing.

To receive a detailed quotation within 8 hours, please include your required Model, Order Quantity, Refrigerant, Voltage/Frequency, and Operating Parameters in your message.
