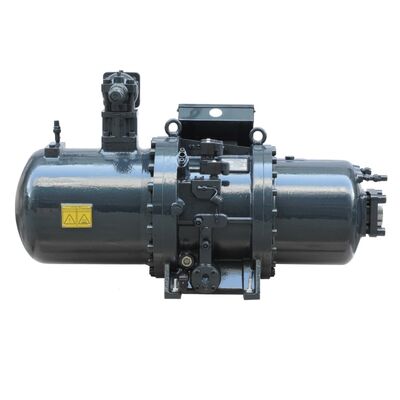

Hanbell RC2-340B-Z RC2-340B-W Semi Hermetic Screw Type Compressor for AC Unit

The RC2-340B incorporates an advanced 5:6 patented screw rotor profile machined using high-precision CNC gear grinding machinery. By eliminating wearing parts such as pistons, wrist pins, and suction/discharge valve plates, this semi hermetic screw type compressor achieves low operating noise, minimal vibration, and continuous mechanical endurance.

Powered by a 3-phase, 2-pole squirrel-cage induction motor built from premium low-loss core steel with Class F insulation. The motor is directly cooled by cold suction refrigerant gas guided through internal channels and guide vanes, enabling the semi hermetic screw type compressor to maintain high operating efficiency under heavy B2B thermal loads.

Constructed with a double-walled gray cast iron (FC25) body with inner reinforcement ribs to prevent housing expansion under high operating pressures. Internal mechanical stability is supported by an array of 10 radial and axial bearings paired with an α balance piston to neutralize rotor dynamic thrust loads and prolong overall bearing service life.

Engineered to handle fluctuating thermal demands, it features an internal hydraulic slide valve supporting 4-stage step capacity control (35%-50%-75%-100%) or continuous stepless regulation (35%-100%). Integrated connection ports easily accommodate liquid injection circuits, external oil coolers, and economizer sub-cooler connections.

• Oil Separation: Direct flange-on FC500 ductile iron oil separator minimizes refrigerant dilution and maintains high lubricant viscosity.
• Electronic Safety: Equipped with embedded PTC thermistors and a protective motor module monitoring coil temperatures, discharge gas heat, phase sequence, and phase loss.
• Available Accessories: Compatible with oil level switches, differential pressure switches, and safety pressure relief valves.

• Commercial Central HVAC: Well-suited for large water-cooled and air-cooled liquid chillers operating in commercial buildings, shopping malls, and central HVAC facilities.
• Industrial Process Cooling: Ideal for precision liquid chillers in chemical, pharmaceutical, and manufacturing plants requiring continuous load matching.
• Cold Storage Facilities: Designed for medium-temperature refrigeration systems, cold room facilities, and agricultural precooling installations.

With over 20 years of dedicated experience in the refrigeration industry, Ruifujie is a modern, large-scale manufacturing enterprise. Our extensive product portfolio includes scroll, reciprocating, rotary, semi-hermetic, and screw compressors, alongside premium cold storage and ice-making equipment. We provide comprehensive OEM and ODM customization services and have built long-term, stable partnerships with global B2B buyers across Russia, the United States, the United Kingdom, the United Arab Emirates, Saudi Arabia, and beyond. We are committed to delivering exceptional refrigeration technology and highly cost-effective solutions.

Looking to integrate the RC2-340B compressor into your commercial HVAC or industrial refrigeration project? Contact the Ruifujie sales team today for factory-direct wholesale pricing and engineering guidance.
