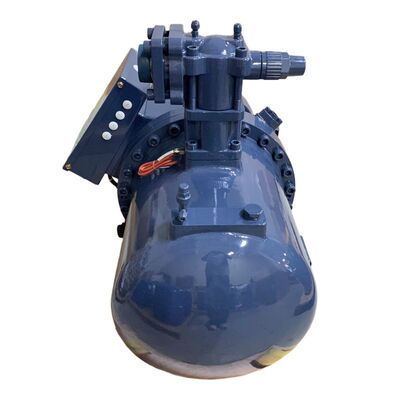

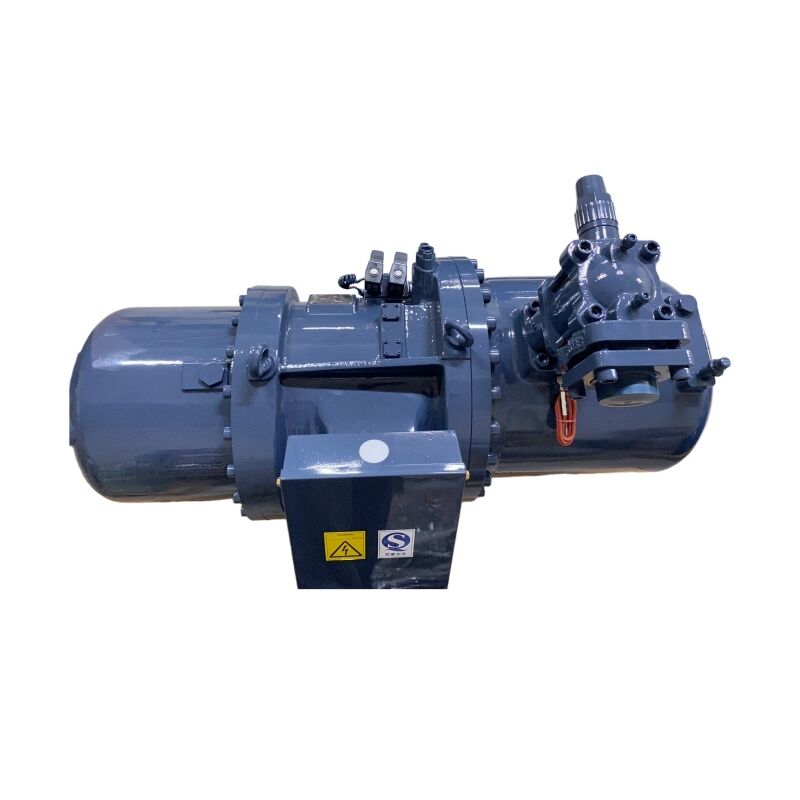

Hanbell RC2-310B-Z RC2-310B-W Refrigeration Screw Air Conditioning Compressor

Patented 5:6 Screw Rotor Geometry
The RC2-310B utilizes a high-precision 5:6 patented screw rotor profile machined using advanced CNC milling and gear grinding equipment. By completely eliminating wearing components such as pistons, wrist pins, and suction/discharge valve plates, this high-performance screw air conditioning compressor delivers exceptionally smooth operation, low running noise, and minimized vibration.

High-Efficiency Motor & Vapor Cooling
Powered by a 3-phase, 2-pole squirrel-cage induction motor built with premium low-loss core steel and F-class insulation. The motor is continuously cooled by suction refrigerant gas directed through dedicated internal slots and guide vanes, maintaining high operational efficiency across varying B2B HVAC workloads.

Heavy-Duty Bearing Assembly & Load Balance
Constructed with a double-walled FC25 gray cast iron housing engineered with internal reinforcement ribs to prevent thermal expansion under high operating pressures. Internal mechanical endurance is supported by a robust combination of 10 radial and axial bearings paired with an α balance piston to counteract dynamic axial thrust loads and extend bearing service life.

Flexible Capacity Control & Economizer Ports
Engineered to handle variable cooling demands, this screw air conditioning compressor provides precise load modulation through an internal hydraulic slide valve, supporting 4-stage step control (35%-50%-75%-100%) or continuous stepless regulation (35%-100%). Built-in auxiliary ports accommodate liquid injection, external oil cooling, and economizer sub-cooler circuits.

Integrated Oil Management & Electronic Protection

• Oil Separation: Includes a direct flange-on FC500 ductile iron oil separator to maintain high lubricant viscosity and minimize refrigerant oil carryover.
• Motor Protection: Equipped with embedded PTC thermistors and a motor protection module monitoring discharge gas heat, coil temperatures, phase loss, and phase sequence.
• System Accessories: Compatible with oil level switches, differential pressure switches, and safety pressure relief valves.

With over 20 years of dedicated experience in the refrigeration industry, Ruifujie is a modern, large-scale manufacturing enterprise. Our extensive product portfolio includes scroll, reciprocating, rotary, semi-hermetic, and screw compressors, alongside premium cold storage and ice-making equipment. We provide comprehensive OEM and ODM customization services and have built long-term, stable partnerships with global B2B buyers across Russia, the United States, the United Kingdom, the United Arab Emirates, Saudi Arabia, and beyond. We are committed to delivering exceptional refrigeration technology and highly cost-effective solutions.
