RC2-260B-Z RC2-260B-W Hanbell Semi-Hermetic Screw AC Compressor

RC2-260B-Z RC2-260B-W Hanbell Semi-Hermetic Screw AC Compressor
RC2-260B-Z RC2-260B-W Hanbell Semi-Hermetic Screw AC Compressor RC2-260B-Z RC2-260B-W Hanbell Semi-Hermetic Screw AC Compressor RC2-260B-Z RC2-260B-W Hanbell Semi-Hermetic Screw AC Compressor RC2-260B-Z RC2-260B-W Hanbell Semi-Hermetic Screw AC Compressor

Large Image :  RC2-260B-Z RC2-260B-W Hanbell Semi-Hermetic Screw AC Compressor

Product Details:
Place of Origin: China
Brand Name: Hanbell
Certification: CE
Model Number: RC2-260B-Z,RC2-260B-W
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Discussed
Packaging Details: WOODEN CASE
Delivery Time: 1 Month
Payment Terms: Western Union,T/T
Supply Ability: 100000Pcs/Year
Contact Now

RC2-260B-Z RC2-260B-W Hanbell Semi-Hermetic Screw AC Compressor

Description
Displacement 60/50Hz: 309/257 M3/hr Horse Power(60/50Hz): 90/75 HP
Application: HVAC, Condensing Unit, Cold Room, Rack System Refrigerant: R134a, R22, R407C,R404A,R507A
Compressor Type: Air/Water Cooled
Highlight:

Hanbell semi-hermetic screw compressor

,

RC2-260B AC screw compressor

,

Screw air compressor with warranty

RC2-260B-Z RC2-260B-W Hanbell Semi-Hermetic Screw AC Compressor
Product Overview
High-performance semi-hermetic screw compressor designed for demanding commercial and industrial applications with advanced features for reliability and efficiency.
Key Features
  • Patented 5:6 Screw Rotor Profile: Precision CNC-milled rotors eliminate wearing components for smooth operation, low noise, and minimal vibration
  • High-Efficiency Motor & Suction Vapor Cooling: 3-phase, 2-pole induction motor with dedicated refrigerant cooling channels for optimal performance
  • Double-Walled Casing & 10-Bearing Array: FC25 gray cast iron construction with reinforced ribs and comprehensive bearing support
  • Dynamic Capacity Control & Economizer Ports: 4-step (25%-50%-75%-100%) or continuous stepless regulation (25%-100%) with integrated connection ports
  • Integrated Oil Management & Electronic Protection: Advanced oil separation, PTC thermistors, and comprehensive motor protection systems
Applications
  • Commercial Central HVAC: Water-cooled and air-cooled liquid chillers for commercial complexes and office towers
  • Industrial Process Cooling: Precision fluid chillers for chemical processing, plastics manufacturing, and food production
  • Cold Storage Logistics: Medium and low-temperature cold rooms, agricultural pre-cooling, and distribution centers
Product Image

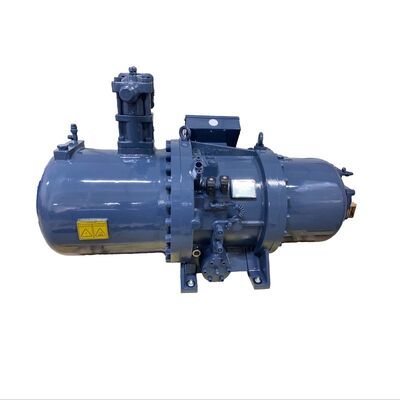

RC2-260B Hanbell Semi-Hermetic Screw AC Compressor unit
Technical Specifications
Model RC2-260B-Z/RC2-260B-W
Cooling Type Air Cooled/Water Cooled
Nominal Power (60Hz/50Hz) 90/75HP
Refrigerant Type R134a, R22, R407C, R404A, R507A
Displacement (60/50Hz) 309/257 m³/hr
Capacity Control (Step) 25-50-75-100%
Capacity Control (Stepless) 25-100%
Lubricant Charge 14L
Oil Heater 150/300W
Weight 560Kg
RC2-260B technical diagram and specifications
About Ruifujie
With over 20 years of experience in refrigeration technology, Ruifujie is a modern manufacturing enterprise offering comprehensive compressor solutions including scroll, reciprocating, rotary, semi-hermetic, and screw compressors. We provide OEM and ODM customization services and maintain global partnerships across multiple continents.
Ruifujie manufacturing facility and operations
Frequently Asked Questions
Q: Which refrigerants can be used with the RC2-260B compressor?
A: The RC2-260B is compatible with R22, R407C, R404A, and R507A refrigerants, making it adaptable to standard HVAC and commercial cooling systems.
Q: What capacity control options does the RC2-260B offer?
A: It supports 4-stage stepped capacity control (25%-50%-75%-100%) as well as continuous stepless regulation (25%-100%) to match fluctuating system demands.
Q: How is motor protection implemented on this model?
A: The compressor utilizes built-in PTC thermistors and an electronic protection module to monitor motor coil temperature, discharge gas heat, phase sequence, and phase loss.
Q: What is your standard delivery time for wholesale orders?
A: In-stock sample units ship within 3 business days, while bulk production orders are typically fulfilled within 10 to 15 working days.
Q: Do you provide OEM branding and nameplate customization?
A: Yes, Ruifujie provides full OEM/ODM support, including custom logos, multi-language metal nameplates, and tailored technical configurations.
Request a Quote
Ready to integrate the RC2-260B compressor into your commercial HVAC or industrial refrigeration project? Contact the Ruifujie technical sales team today for factory-direct wholesale pricing, CAD dimensions, and engineering guidance.
Please provide your required Model, Quantity, Refrigerant, Voltage, Operating Conditions, and Project Requirements to help us quote within 8 hours.
