RC2-230B-Z RC2-230B-W Hanbell Rooftop AC Screw Compressor

RC2-230B-Z RC2-230B-W Hanbell Rooftop AC Screw Compressor
RC2-230B-Z RC2-230B-W Hanbell Rooftop AC Screw Compressor RC2-230B-Z RC2-230B-W Hanbell Rooftop AC Screw Compressor RC2-230B-Z RC2-230B-W Hanbell Rooftop AC Screw Compressor RC2-230B-Z RC2-230B-W Hanbell Rooftop AC Screw Compressor

Large Image :  RC2-230B-Z RC2-230B-W Hanbell Rooftop AC Screw Compressor

Product Details:
Place of Origin: China
Brand Name: Hanbell
Certification: CE
Model Number: RC2-230B-Z,RC2-230B-W
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Discussed
Packaging Details: WOODEN CASE
Delivery Time: 1 Month
Payment Terms: Western Union,T/T
Supply Ability: 100000Pcs/Year
Contact Now

RC2-230B-Z RC2-230B-W Hanbell Rooftop AC Screw Compressor

Description
Compressor Type: Air/Water Cooled Displacement 60/50Hz: 277/230 M3/hr
Application: HVAC, Condensing Unit, Cold Room, Rack System Refrigerant: R134a, R22, R407C,R404A,R507A
Horse Power(60/50Hz): 83/69 HP
Highlight:

Hanbell rooftop screw compressor

,

RC2-230B-Z screw air compressor

,

rooftop AC screw compressor with warranty

RC2-230B-Z RC2-230B-W Hanbell Rooftop AC Screw Compressor
Product Overview
Advanced 5:6 screw rotor geometry delivers smooth operation, low noise, and minimal vibration by eliminating wearing components like pistons and valve plates.
Key Features
  • Advanced Rotor Design: High-precision 5:6 patented screw rotor profile manufactured using advanced CNC gear milling and grinding machinery
  • High-Efficiency Motor: 3-phase, 2-pole squirrel-cage induction motor with cold suction refrigerant gas guidance for maximum efficiency
  • Reinforced Construction: Double-walled rotor casing cast from high-strength FC25 gray iron with inner reinforcement ribs
  • 10-Bearing Assembly: Combination of radial and axial bearings with axial balance piston for mechanical endurance
  • Flexible Capacity Control: Stepped control (35%-50%-75%-100%) or continuous stepless adjustment (25%-100%)
  • Integrated Oil Management: Direct flange-on FC500 ductile iron oil separator with electronic safety monitoring
Application Areas
  • Commercial Central HVAC Systems: Large air-cooled and water-cooled chillers for commercial buildings, shopping complexes, and central HVAC facilities
  • Industrial Process Cooling: Precision fluid chillers in chemical processing, plastics manufacturing, and food production plants
  • Large Cold Storage & Logistics: Medium and low-temperature cold storage rooms, agricultural pre-cooling facilities, and logistics centers
Product Image

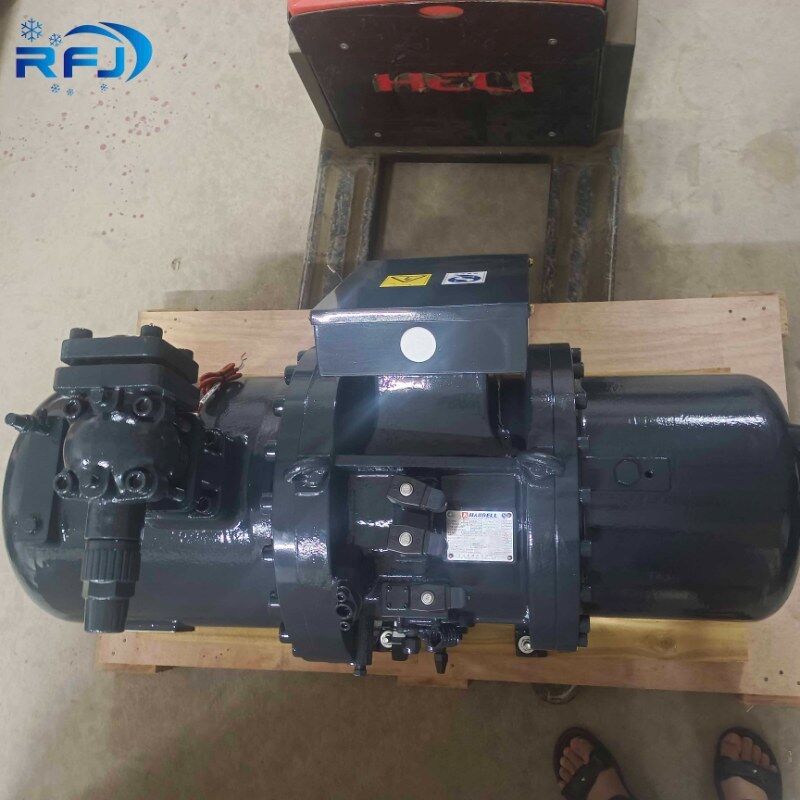

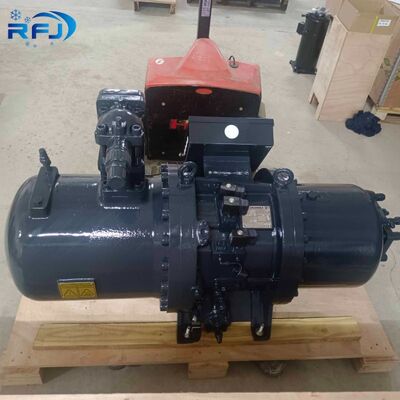

RC2-230B screw compressor unit showing industrial design and construction Technical diagram of RC2-230B screw compressor components
Technical Specifications
Model RC2-230B-Z/RC2-230B-W
Cooling Type Air Cooled/Water Cooled
Nominal Power (60Hz/50Hz) 83/69 HP
Refrigerant Type R134a, R22, R407C, R404A, R507A
Displacement (60/50Hz) 277/230 m³/hr
Capacity Control (Step) 35-50-75-100%
Capacity Control (Stepless) 25-100%
Lubricant Charge 14L
Oil Heater 150/300W
Weight 555Kg
Company Profile
With over 20 years of dedicated experience in the refrigeration industry, Ruifujie is a modern, large-scale manufacturing enterprise. Our extensive product portfolio includes scroll, reciprocating, rotary, semi-hermetic, and screw compressors, alongside premium cold storage and ice-making equipment. We provide comprehensive OEM and ODM customization services and have built long-term, stable partnerships with global B2B buyers across Russia, the United States, the United Kingdom, the United Arab Emirates, Saudi Arabia, and beyond. We are committed to delivering exceptional refrigeration technology and highly cost-effective solutions.
Ruifujie manufacturing facility and company operations
Frequently Asked Questions
What refrigerants are compatible with the RC2-230B compressor?
The RC2-230B is specifically engineered to operate with R22, R407C, R404A, and R507A refrigerants across various HVAC and commercial refrigeration applications.
What capacity control options are available on this model?
The compressor supports 4-stage stepped capacity control (35%-50%-75%-100%) or continuous stepless capacity control (25%-100%) to suit variable dynamic thermal loads.
How is motor thermal protection handled in the RC2-230B?
It features built-in PTC thermistors coupled with an electronic protection module that continuously monitors discharge gas temperature, motor coil winding heat, phase sequence, and phase loss.
What is your standard lead time for wholesale orders?
In-stock sample units ship within 3 business days, while bulk wholesale production orders are delivered within 10 to 15 working days.
Does Ruifujie offer custom OEM options for branding and nameplates?
Yes, Ruifujie provides full OEM and ODM customization services, including multi-language metal nameplates, customized logos, and customized technical specs.
Request a Quote
Ready to integrate the RC2-230B compressor into your commercial HVAC or refrigeration system? Contact the Ruifujie sales team today for factory-direct B2B pricing, dimension sheets, and engineering assistance.
Please provide your required Model, Quantity, Refrigerant, Voltage, Operating Conditions, and Project Requirements to help us quote within 8 hours.
