06TSR223 90HP Semi-Hermetic Refrigeration Screw Compressor for Freezing Room
High-Volume Performance for Large Cold Chains
The 06TSR223 semi-hermetic refrigeration screw compressor is designed for high-capacity industrial cooling, large-scale commercial cold storage facilities, and quick-freezing application plants. Featuring a powerful 90 HP rated output and an impressive maximum displacement of up to 809 m³/hr (483 cfm at 60Hz), this refrigeration screw compressor delivers continuous high volumetric efficiency, ensuring rapid thermal reduction and stable temperature control for large commercial facilities.
Stepless Capacity Control for Variable Load Efficiency
Operators of industrial refrigeration plants often struggle with severe energy waste, power surges during high-load startups, and accelerated wear on compressor components under varying operating conditions. The 06TSR223 solves these critical operational challenges through 25%-100% stepless capacity regulation and built-in economizer connection capability, allowing flexible load matching that minimizes power draw and reduces operational strain during off-peak periods.
Industrial Mechanical Reliability & Built-In Safety
Built with high-precision SKF/NSK anti-friction rolling bearings, high-efficiency motor windings with integrated NTC thermal protection sensors, and an internal check/safety valve assembly, this refrigeration screw compressor offers exceptional wear resistance, leak-free compression, and reliable continuous operation under severe industrial conditions.

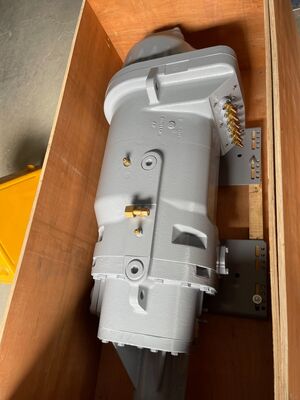

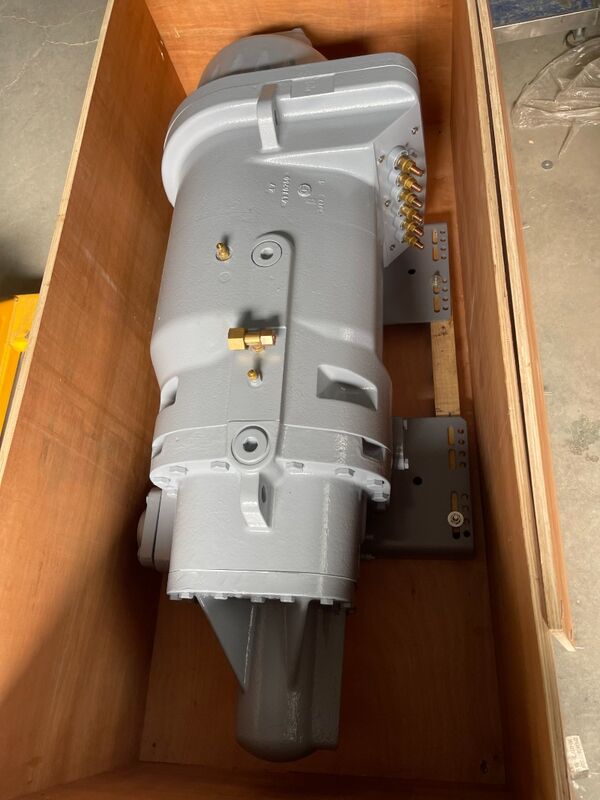

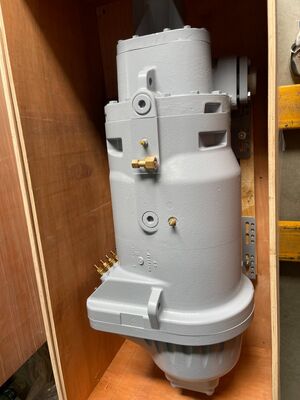

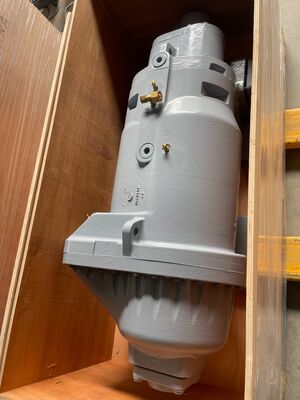

Product Image
Technical Specifications
| Model |
06TSR223 |
| Nominal Power |
90 HP |
| Refrigerant Type |
R22/R404A/R507 |
| Displacement (60/50Hz) |
483/403 cfm | 809/670 m³/hr |
| Capacity Control |
Stepless Adjustment 25-100% |
| Economizer |
Y |
| Voltage (V,A) |
06TSR223SM3D | 460V-3-60Hz-166A
400V-3-50Hz-160A |
| Weight |
421kg |
Company Introduction
With over two decades of engineering specialization in thermal and refrigeration equipment, Ruifujie operates as a modernized manufacturing enterprise producing top-quality scroll, piston, rotary, semi-hermetic, and twin-screw compressors, alongside evaporators, blast freezing tunnels, and commercial ice machines. We offer tailored OEM/ODM manufacturing capabilities to fulfill diverse international engineering standards. Ruifujie exports products worldwide, supplying major commercial contractors across Russia, the United States, the United Kingdom, Saudi Arabia, the United Arab Emirates, and beyond. Through sustained technical quality and exceptional cost efficiency, Ruifujie maintains strong, long-term partnerships with global refrigeration buyers.
Frequently Asked Questions
Q1: What refrigeration installations are best suited for the 06TSR223 model?
A1: The 06TSR223 semi-hermetic compressor is designed for high-capacity industrial applications, including large logistics cold rooms, food freezing tunnels, and central process chillers requiring high volumetric displacement up to 809 m³/hr.
Q2: How does the 25% -100% stepless capacity regulation benefit system performance?
A2: Stepless capacity regulation allows the compressor to smoothly match varying thermal loads, preventing frequent compressor cycling, mitigating electrical demand spikes, and significantly reducing power consumption under part-load conditions.
Q3: What electrical voltage standards are supported by the 06TSR223 compressor?
A3: The 06TSR223 model is configured for heavy-duty industrial power grids, supporting 460V-3-60Hz and 400V-3-50Hz voltage setups.
Q4: What is your MOQ policy?
A4: In-stock items have no minimum order quantity, production orders are open for negotiation.
Q5: What are your standard delivery lead times?
A5: In-stock sample items ship within 3 days, while complete bulk orders are processed and completed within 10 to 15 working days.
One-Stop Procurement Solution
As a trusted international supplier of industrial refrigeration equipment, Ruifujie delivers factory-direct pricing, complete system integration advice, and OEM customization for every refrigeration screw compressor. Submit your required cooling capacity, operating voltage, refrigerant choice, or batch quantity today, and our expert technical sales team will provide a comprehensive quotation within 8 hours.
