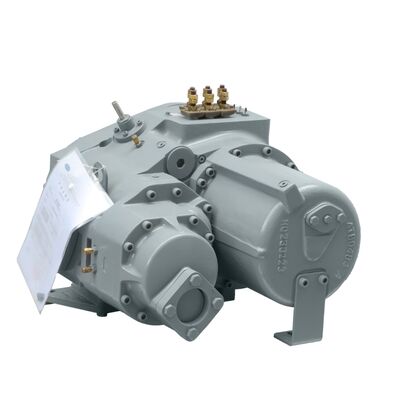

06NA2146S7NA-A00 75HP Screw Refrigeration Compressor for Air Conditioner

06NA2146S7NA-A00 75HP Screw Refrigeration Compressor for Air Conditioner
06NA2146S7NA-A00 75HP Screw Refrigeration Compressor for Air Conditioner 06NA2146S7NA-A00 75HP Screw Refrigeration Compressor for Air Conditioner 06NA2146S7NA-A00 75HP Screw Refrigeration Compressor for Air Conditioner 06NA2146S7NA-A00 75HP Screw Refrigeration Compressor for Air Conditioner

Large Image :  06NA2146S7NA-A00 75HP Screw Refrigeration Compressor for Air Conditioner

Product Details:
Place of Origin: China
Brand Name: Carlyle
Certification: CE
Model Number: 06NA2146S7NA-A00
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Discussed
Packaging Details: WOODEN CASE
Delivery Time: 1 Month
Payment Terms: Western Union,T/T
Supply Ability: 100PC
Contact Now

06NA2146S7NA-A00 75HP Screw Refrigeration Compressor for Air Conditioner

Description
Compressor Type: Screw Condensertype: Air-cooled
Commercial Refrigeration: HVAC&Cooling Units Refrigerant: R134a
Horse Power: 75HP
Highlight:

75HP screw refrigeration compressor

,

screw air compressor for air conditioner

,

refrigeration compressor with warranty

06NA2146S7NA-A00 75HP Screw Refrigeration Compressor for Air Conditioner
Product Overview
This high-efficiency screw refrigeration compressor delivers reliable performance for commercial air conditioning applications with advanced energy management and robust construction.
  • Precision Energy Management: 3-step capacity control system (100%-66%-33%) with dual solenoid valves dynamically modulates output to match cooling demands, reducing energy waste and operational costs.
  • Enhanced Reliability: Engineered with patented rotor profiles, SKF/NSK rolling bearings, built-in check valves, oil filter, safety relief valve, and discharge muffler for extended service life.
  • Environmental Compliance: Operates on eco-friendly R134a refrigerant with UL, CE, and ISO 9002 certifications, featuring high-efficiency motor windings with NTC thermistors.
  • Global Compatibility: Supports Y-Δ step-starting across standard global voltages for seamless replacement in air-cooled chiller applications.
Product Image

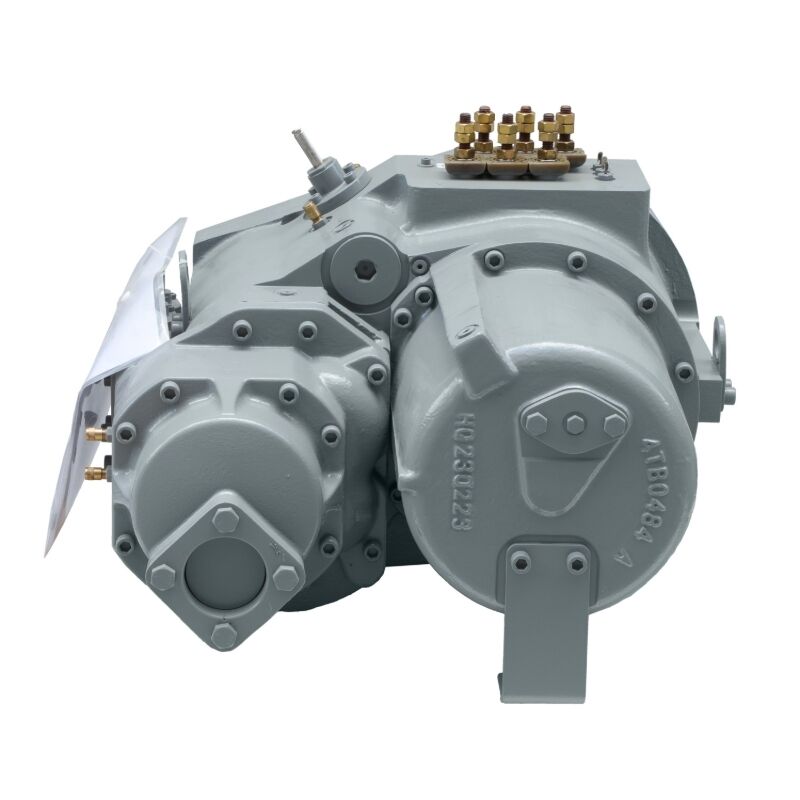

75HP Screw Refrigeration Compressor Unit
Technical Specifications
Model 06NA2146S7NA-A00
Nominal Power 75 HP
Refrigerant Type R134a
Displacement (60/50Hz) 146 CFM / 203 m³/h
Economizer N
Rated Voltage (V-Hz, A) 460V-60Hz-91.9A
400V-50Hz-90.1A
Weight 380 kg
Screw Compressor Technical Diagram
Company Profile
Ruifujie is a modern industrial refrigeration supplier with over 20 years of manufacturing expertise, specializing in high-performance scroll, piston, rotary, semi-hermetic, and screw compressors, as well as complete cold room systems and ice machinery.
We offer full OEM/ODM customization options to adapt equipment to localized voltage standards and regional engineering demands. Our machinery is exported worldwide to major international markets, including Brazil, Italy, and Saudi Arabia, earning trusted long-term partnerships with global contractors and equipment distributors.
Ruifujie Manufacturing Facility
Frequently Asked Questions
What are the exact displacement and port connection sizes for the 06NA2146S7NA-A00 compressor?
The 06NA2146S7NA-A00 provides a displacement of 203 m³/h at 50Hz (146 CFM at 60Hz), featuring a 2-5/8 in suction port, 4-1/8 in discharge port, and 1-3/8 in economizer interface.
How does the 3-step capacity modulation operate on this 75HP unit?
The unit utilizes simple dual solenoid valves to modulate output between 100%, 66%, and 33% power levels, efficiently adapting to variable thermal loads while cutting electricity costs.
What internal protective devices are built into this screw compressor frame?
The compressor contains an internal check valve to prevent reverse rotation, an internal safety relief valve, a built-in oil filter, a discharge muffler, and NTC thermistors for motor protection.
What is the standard production lead time for bulk orders?
Standard bulk production orders are completed and prepared for dispatch within 10 to 15 working days.
How is this heavy 380 kg screw compressor packaged for ocean transport?
Each compressor is securely bolted onto a reinforced wooden pallet, wrapped in moisture-proof anti-corrosion film, and enclosed in a heavy-duty export plywood crate.
Custom Bulk Procurement
Selecting the right industrial screw refrigeration compressor model is essential to optimizing system energy performance and ensuring continuous cooling operations. Ruifujie provides technical consultation, precision component matching, and flexible OEM customization tailored to your project requirements.
Please submit your project parameters, working temperatures, target refrigerant, and required order quantity today, and our engineering team will provide a formal quotation within 8 hours.
