06CC665 20HP 400V Two Stage Cold Room Semi Hermetic Compressor
High-Capacity Two-Stage Compression Performance
Built specifically for commercial cold storage, industrial freezing, and low-temperature process cooling, this 20HP semi hermetic compressor features a specialized two-stage compression mechanism housed within a single compact body. Utilizing 6 cylinders—4 cylinders dedicated to the low-pressure stage and 2 cylinders to the high-pressure stage—it achieves a low-stage displacement of 61.2 m³/h at 1450 rpm. The integrated subcooler heat exchanger maximizes liquid subcooling, allowing systems to operate with reduced refrigerant charge while maintaining stable cooling capacity under extreme thermal loads.
Reduced Pressure Ratios and Lower Energy Costs
By dividing total pressure elevation across two compression stages inside one housing, this advanced semi hermetic compressor operates at significantly lower compression ratios per cylinder stage. This design minimizes internal mechanical friction, lowers discharge gas temperatures, and eliminates the need for external booster compressors or complex supplementary subcooler units. Consequently, it maintains lubrication stability and significantly cuts electrical power consumption during low-temperature service.
Superior Structural Reliability and Eco-Refrigerant Support
Engineered for long-term continuous operation, this heavy-duty semi hermetic compressor is UL-approved and compatible with eco-friendly refrigerants including R22, R404A, and R507. Supported by a robust 243 kg cast-iron structure, high-flow Swedish steel valve plates, and a generous 9.0 L oil charge capacity, it delivers optimal bearing protection and exceptional resistance against thermal fatigue in demanding refrigeration systems.

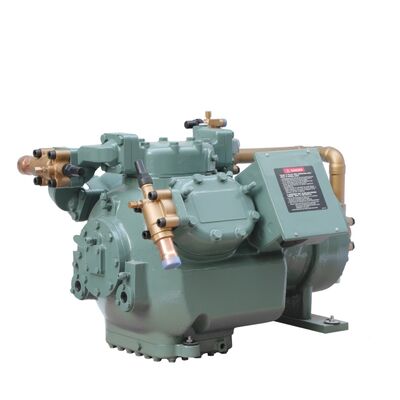

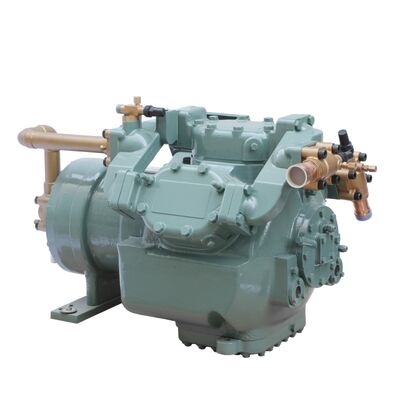

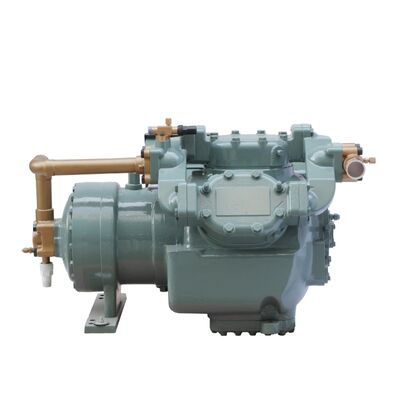

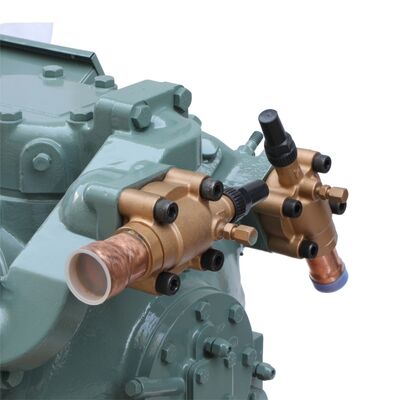

Product Image
Technical Specifications
| Model |
06CC665 |
| Nominal Power |
20 HP |
| Refrigerant Type |
R22, R404A, R507 |
| Rated Current |
40 A |
| Oil Charge |
9 L |
| Weight |
243 kg |
Company Introduction
Ruifujie is a modern industrial cooling supplier delivering high-performance scroll, piston, rotary, semi-hermetic, and screw refrigeration compressors, alongside complete cold room units and commercial ice machinery. We offer full OEM/ODM customization options to adapt equipment to localized voltage requirements and regional engineering demands. Supported by competitive factory-direct pricing, our products are exported to major international markets including South Africa, Mexico, and the Philippines, earning trusted long-term partnerships with global contractors and equipment distributors.
Frequently Asked Questions
Q1: What are the exact low-pressure and high-pressure stage displacement figures for the 06CC665 compressor?
A1: At 1450 rpm, the 06CC665 model yields a low-pressure stage displacement of 61.2 m³/h across 4 cylinders and a high-pressure stage displacement of 30.6 m³/h across 2 cylinders.
Q2: How does two-stage compression improve performance in low-temperature refrigeration?
A2: By splitting total compression across two stages inside one body, compression ratios per cylinder are significantly reduced, lowering discharge temperatures, saving power, and maintaining high cooling capacity without extra booster units.
Q3: What refrigerants and electrical voltage options are supported by the 06CC665 model?
A3: The unit is UL-approved for R22, R404A, and R507 refrigerants, and operates on standard dual-voltage power supplies (400V-3-50 / 460V-3-60).
Q4: What is the Minimum Order Quantity (MOQ) for purchasing this compressor model?
A4: Our Minimum Order Quantity (MOQ) is 1 unit for standard models currently in stock.
Q5: How quickly can I receive a formal price quote for bulk order inquiries?
A5: Once you submit your project requirements, target refrigerant, and order quantity, our engineering team will provide a formal quotation within 8 hours.
